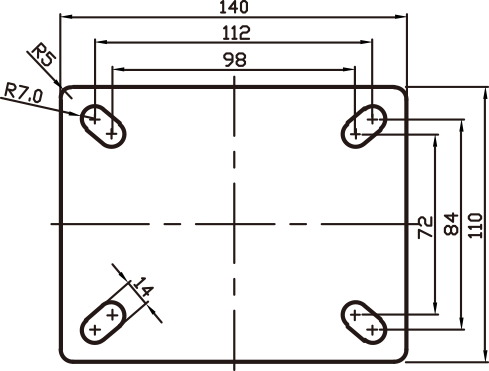

*Top plate thickness| 10 mm
*Kingpin size| 20 mm
*Surface Finish| Blue paint
*Double suspension structure
*The thrust and tapered bearings gives a smooth
swivel action and easy steering
Bead structure:
Rigid | Swivel | Total Brake | Dia. x Width | Offset (w/ Brake) | Initial Tension | Spring Tension | Spring Travel | Total Height | Load Capacity |
---|---|---|---|---|---|---|---|---|---|
C721R-4/HUA620RTp/TG | C721S-4/HUA620RTp/TG | C721WJ-4/HUA620RTp/TG | 150x50 | 138 | 70 | 600 | 19 | 225 | 400 |
C721R-5/HUA820RTp/TG | C721S-4/HUA820RTp/TG | C721WJ-5/HUA820RTp/TG | 150x50 | 163 | 70 | 600 | 19 | 265 | 450 |
长度单位为"mm"
