C430-CUNB series

Japanese Type Medium Duty Herdar Pullprene® Polyurethane mold-on Nylon castors

*Top plate thickness|4-4.5 mm

*Surface Finish|Blue zinc plated

*Standard JP type design,cost effective

*材料

Herdar Pullprene®聚氨酯

*硬度

92+_3 Shore A

*胎面厚度

12-15mm

*轮芯

尼龙绿色

*轴承

滚珠

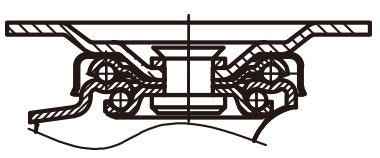

Bead structure:

Rigid	Swivel	Side Brake	Total Brake	Dia. x Width	Offset (w/ Brake)	Total Height	Load Capacity

C430R/CUN1032B1/TG	C430S/CUN1032B1/TG	C430BA/CUN1032B1/TG	C430G/CUN1032B1/TG	100x35	85	144	200
C430R/CUN1238 B2/TG	C430S/CUN1238B2/TG	C430BA/CUN1238B2/TG	C430G/CUN1238 B2/TG	130x42	103	177	250
C430R/CUN1538B2/TG	C430S/CUN1538B2/TG	C430BA/CUN1538B2/TG	C430T/CUN1538B2/TG	150x45	116	198	350
C430R/CUNB204B2+1/TG	C430S/CUNB204B2+1/TG	C430BA/CUNB204B2+1/TG	C430T/CUNB204B2+1/TG	200x45	158	250	450
