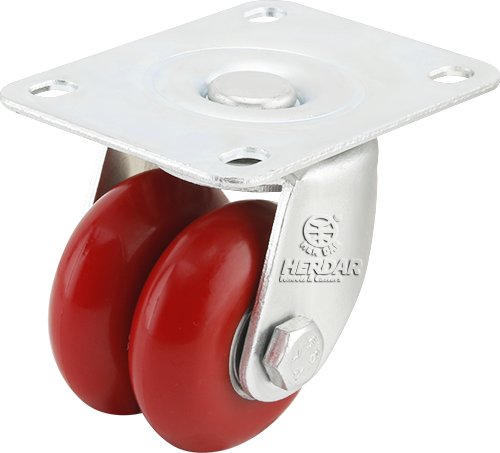

C331S/HUA6524/r series
feature of product
* Elastic polyurethane material
* Silent, abrasion resistant, no colour fading
* Low profile
* Two wheel design, flexible rotation
*Tread material
Towprene
*Hardness
93 ±2 Shore A
*Hub material
Aluminium
| Part No. | Material/Hardness | Diameter | Wheel Width | Rotation Radius | Top Plate | Bolt Hole Centers(mm) | Attching Bolt Size | Core Material | Total Height | Load Capacity |
|---|---|---|---|---|---|---|---|---|---|---|
| C331S/UAl6524/r | PU 93A | 65 | 24x2 | 20 | 111x80 | 87/77.4x60 | 8.7 | Aluminium | 87 | 200 |
