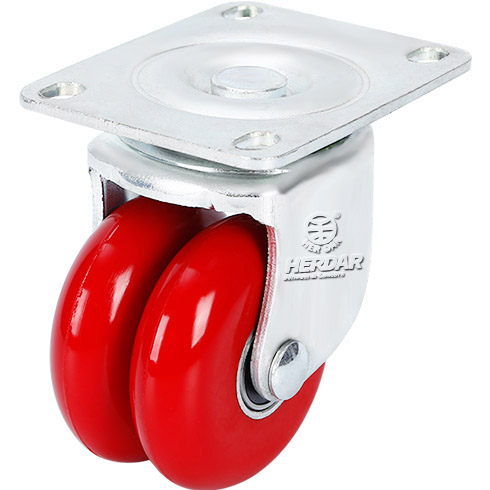

C410S/HEUA3100r series
feature of product
* Elastic polyurethane material
* Silent, abrasion resistant, no colour fading
* Low profile
* Two wheel design, flexible rotation
*Tread material
Polyurethane
*Hardness
93 ± 2 Shore A
| Part No. | Material/Hardness | Diameter | Wheel Width | Rotation Radius | Top Plate | Bolt Hole Centers(mm) | Attching Bolt Size | Core Material | Total Height | Load Capacity |
|---|---|---|---|---|---|---|---|---|---|---|
| C410S/HEUA3100r | PU 93A | 76 | 24x2 | 20 | 103.5x82 | 81.5x60 | 8.7 | Aluminium | 107 | 200 |
