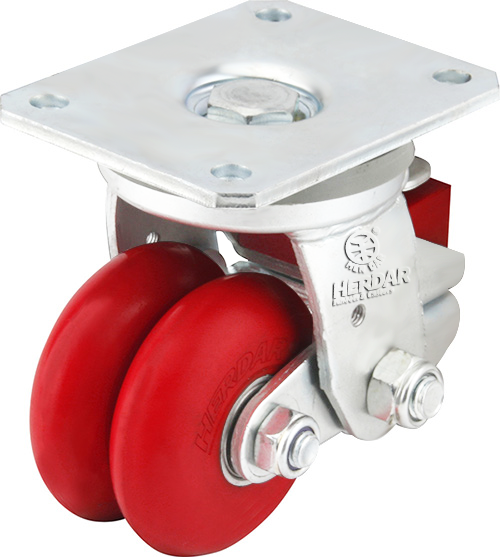

Suspension Balance Castors series

C415S-1.5-HEUA3100C/r

* Elastic polyurethane material

* Silent, abrasion resistant, no colour fading

* Two wheel design, flexible rotation

*Tread material

Polyurethane

*Hardness

93 ± 2 Shore A

*Hub material

Aluminium

Part No.	Material/Hardness	Diameter	Wheel Width	Top Plate	Bolt Hole Centers(mm)	Attching Bolt Size	Offset (w/ Brake)	Initial Tension	Spring Tension	Spring Travel	Core Material	Total Height	Load Capacity

C415S-1.5-HEUA3100C/r	PU 93A	76	24x2	110x85	86x60	9	65	50	160	10	Aluminium	116-106.9	220
