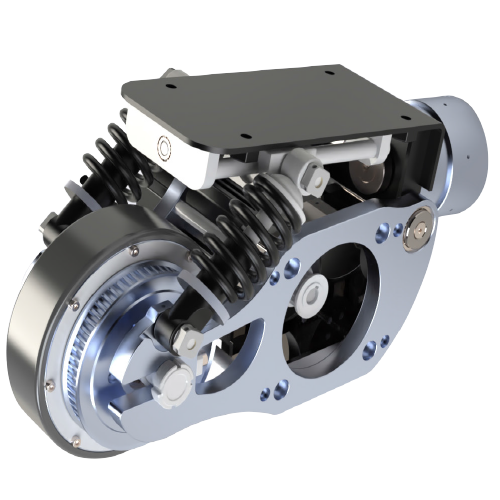

AM-4 BOOSTER CASTORS
customized series:

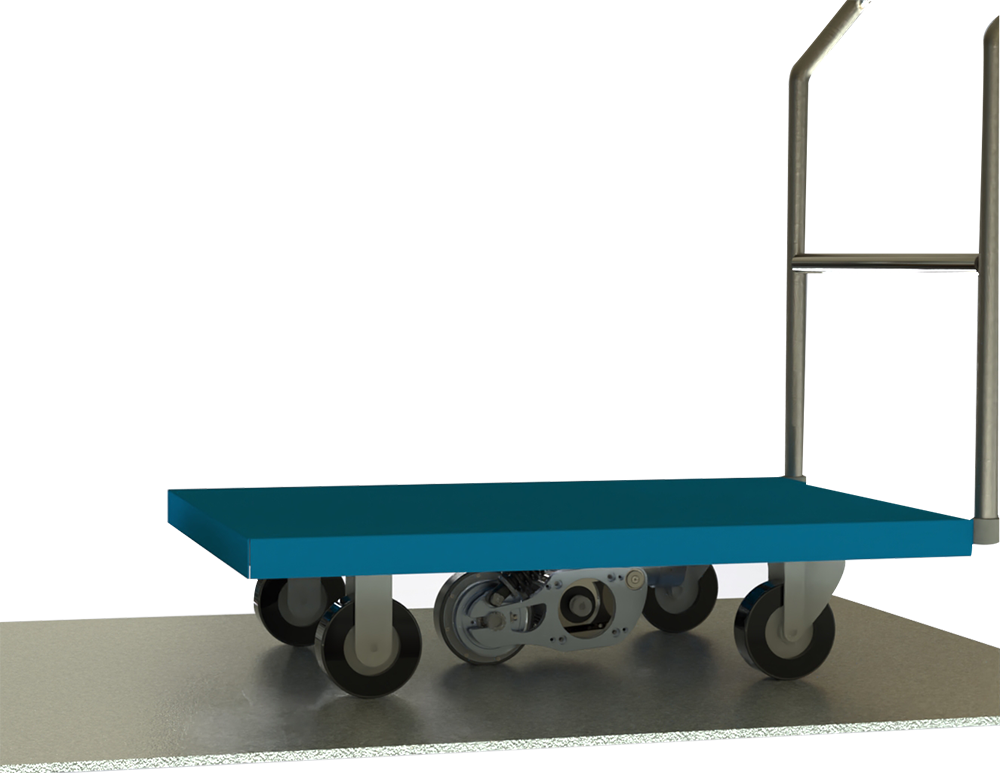

product manual: Booster castors are utilized in various machinery and material handling vehicles to facilitate the easy movement of heavy equipment and materials within the workshop.
Rolling resistance
Mute operation
Ground protection
Bookmark Recommend to him Inquiries PDF downloads 400-9009293
Technical Parameters: (mm, kg, ℃)
Dimension (L×W×H) 285X145X(170~250) mm
Wheel diameter (D) 125 mm
Trolley base height 178-250 mm
Max load capacity 20% @ 400kg
Max speed 1.1 m/s
Turning radius single way
Net weight 6 kg
Hub Material 6061 Aluminium
Tread Material polyurethane (can be adjusted by request)
Hardness 73A (can be adjusted by request)
