Wheels

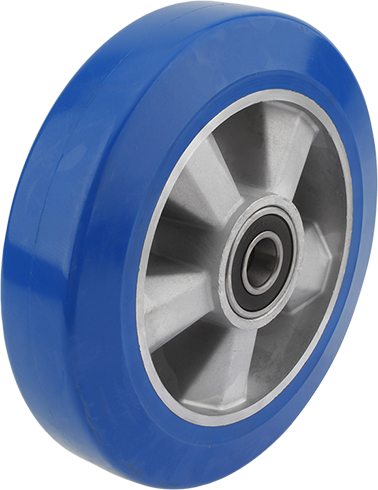

European type Elasticprene® Polyurethane mold-on Aluminium wheel
2WEMA1550L/B4 series:
product manual: 1.Extremely low rolling resistance
2.Saves effort, Noiseless running, Light-weight.
3.Non-marking, Floor protection
Rolling resistance
Mute operation
Ground protection
Bookmark Recommend to him Inquiries PDF downloads 400-9009293
Technical Parameters: (mm, kg, ℃)
Wheel diameter (D) 160 mm
Wheel width (W) 50 mm
Hub length 60 mm
Hub bore hole dia.(d2) 47 mm
Bearing type number 6204
Axle bore hole(d) 20 mm
Max Load Capacity 450 kg
Temperature range -20℃ - +70℃
Bearing type(1) 滚珠
Hardness 78 ±3 Shore A


-To do what others cannot, Master what others have not.-
