Wheels

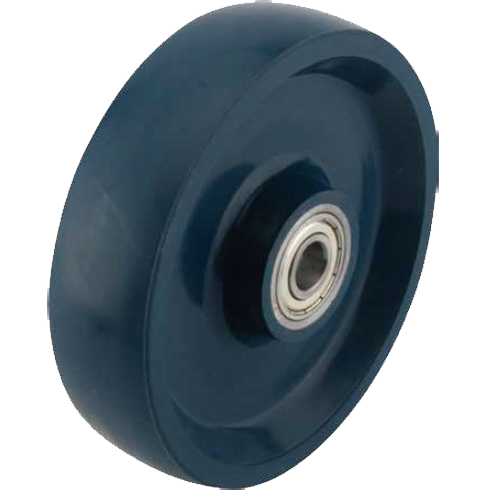

American type Hardprene® Solid Polyurethane mold-on steel sleeve wheel
1WSSP1230/B5 series:
product manual: 1.It can be stored for a long time and is hydrolysis resistant in temparatures of -30℃ .
2.Good abrasion resistance
3.Rust and corrosion resistant
Rolling resistance
Mute operation
Ground protection
Bookmark Recommend to him Inquiries PDF downloads 400-9009293
Technical Parameters: (mm, kg, ℃)
Wheel diameter (D) 304 mm
Wheel width (W) 76 mm
Hub length 82 mm
Hub bore hole dia.(d2) 52 mm
Bearing type number 6205
Axle bore hole(d) 25 mm
Max Load Capacity 700 kg
Temperature range -30℃ - +70℃
Bearing type(1) Ball bearing
Hardness 55±3 Shore D
