Wheels

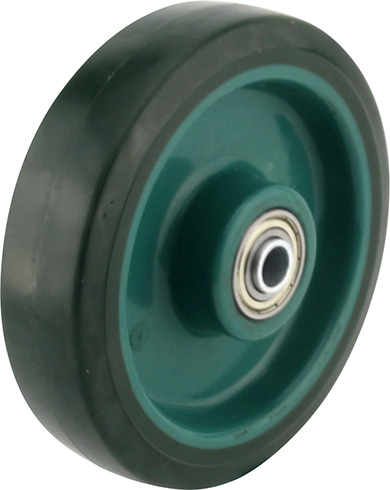

Japanese Type Pullprene® Polyurethane mold-on nylon wheel
2WCUN1032C/B1 series:
product manual: 1.Standard JP type
2.Nylon core is lightweight and performs good under load capacity.
3.Noiseless running, Non-marking, Light-weight, Hydrolysis resistance
4.Recommended application for clean rooms and electronic factories.

Rolling resistance
Mute operation
Ground protection
Bookmark Recommend to him Inquiries PDF downloads 400-9009293
Technical Parameters: (mm, kg, ℃)
Wheel diameter (D) 100 mm
Wheel width (W) 32 mm
Hub length 40 mm
Hub bore hole dia.(d2) 32 mm
Bearing type number 6201
Axle bore hole(d) 12 mm
Max Load Capacity 150 kg
Temperature range -20℃ - +70℃
Bearing type(1) Ball bearing
Hardness 92 ± 3 Shore A
