Castors

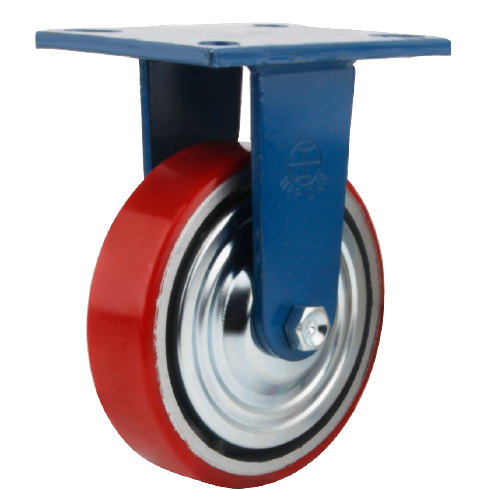

Blue Bracket Heavy Duty Pullprene® Polyurethane Mold-On Cast Iron Castors
C610R/PU4150/TG series:
product manual: 1.Top plate thickness: 10 mm
2.Kingpin size: 16-20 mm
3.Surface Finish: Blue paint
4.Features: Classic design, extremely durable,higher load rating, smooth swivel action dueto thrust and tappered bearing.

Rolling resistance
Mute operation
Ground protection
Bookmark Recommend to him Inquiries PDF downloads 400-9009293
Technical Parameters: (mm, kg, ℃)
Dia. x Width(DxW) 100x38 mm
Offset (w/ Brake)(R) /
Total Height(H) 150 mm
Bolt hole diameter(d) 14 mm
Top plate size(AXB) 140X110 mm
Bolt hole spacing(axb) 98X72 mm
Max Load Capacity 300 kg
Hardness 92+_3 Shore A
Bearing type Ball bearing

-To do what others cannot, Master what others have not.-
